Yale Shower Hinge Wall to Glass Single side plate (CP) Round Edge

Description

Description:

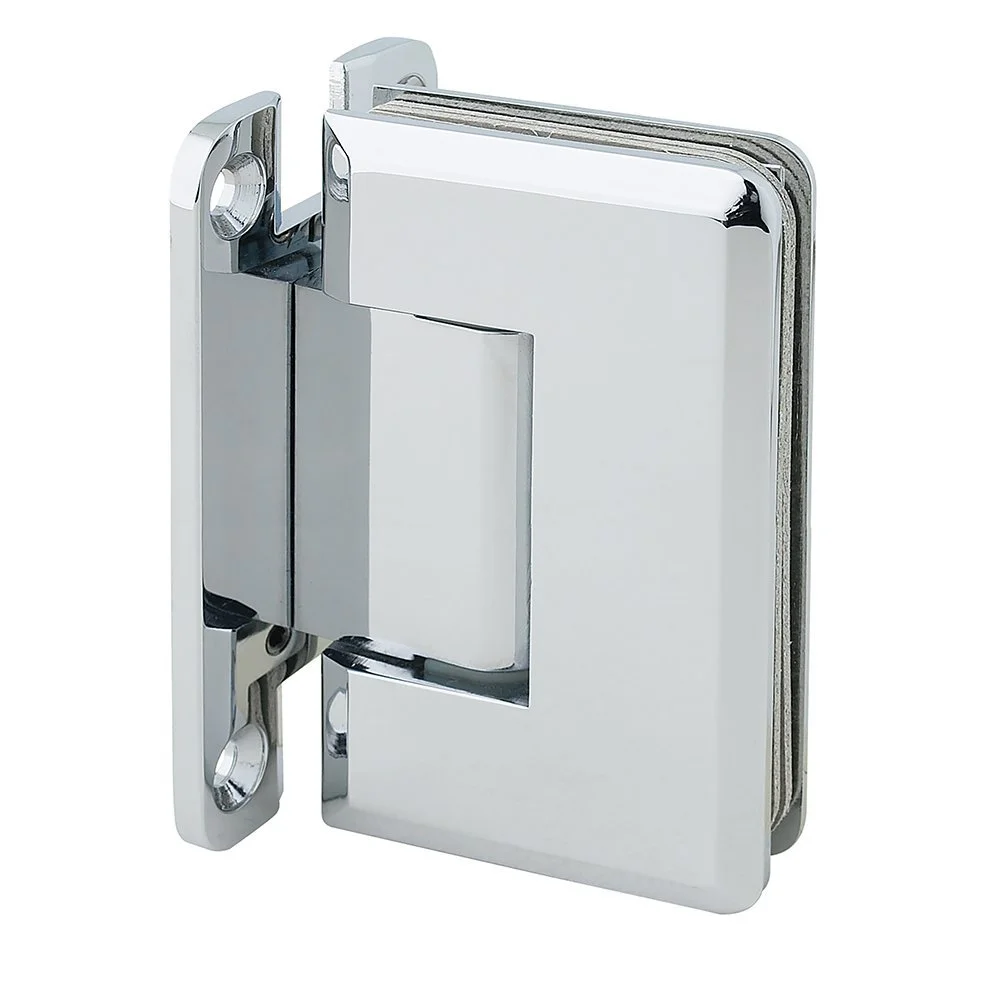

The SHB037L-CP-0C shower hinge is designed for frameless heavy glass shower doors. It is made of high-quality materials and has a chrome finish that adds to the aesthetics of the bathroom. The hinge is easy to install and is durable enough to last for many years.

Specifications:

• Material: Solid brass
• Finish: Chrome
• Glass Thickness Range: 3/8″ to 1/2″ (10 to 12 mm)
• Maximum Weight: 110 lbs. (50 kg)
• Closing Type: Self-centering when within 15° of closed position
• Cutout Required
• Configuration: Wall-to-Glass
• Beveled edge panel hinge with 5 Degree offset (5 Degree Bevel)
• Dimensions: 2-1/4″ x 3-11/16″ (57 x 94 mm) – Hole Diameter Required: 1/2″ (12 mm)
• Includes: Gaskets, Screws, and Glass Fabrication Dimensions
